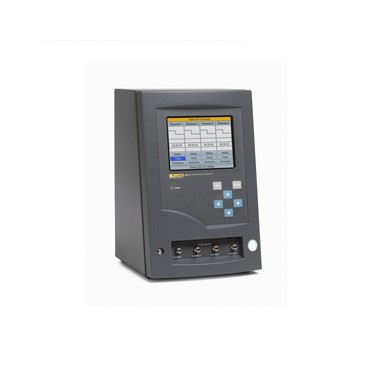

美國福祿克 FLUKE IDA-5 輸液設備分析儀

Ensure infusion pumps are tested accurately and quickly with the IDA-5 Infusion Device Analyzer.

特點

Tests up to four infusion pumps at the same time
Customizable test templates for quick and standardized testing
On-board and PC-based automation to fully test to IEC60601-2-24 testing requirements
兼容幾乎所有類型的輸液設備
Real time snap shots of flow and pressure for immediate issue recognition
Instantaneous and average flow measurement of up to 1500 ml/hr
可測量高達 45 psi 的阻塞壓
Single-flow, dual-flow (piggyback) and PCA testing
Auto-start mode enables unit to begin testing only when fluid is detected to maximize accuracy
Ability to automatically end flow measurement based on user-defined time, volume or both
Convenient and easy data entry with plug-n-play, USB compatible, keyboard or barcode scanner
Compatible with a wide variety of off-the-shelf printers
內置存儲器可保存測試結果，供打印或下載至計算機
Optional Ansur automation software completely integrates medical device testing including electrical safety, visual inspection and other performance parameters for total digital data management
Tethers with other Ansur-automated test devices for harmonized workflow and reporting
支持網絡遍布全球，可向世界各地的福祿克醫療測試客戶提供快捷的服務，確保安枕無憂。
技術與指標

規格

流速測量
Method	測量一段時間內流過的容積，然后計算流量
量程	0.1 ml/h to 1500 ml/h (2600 m/h is shown)
精度	1 % of reading ±1 LSD for flows of 16 to 200 ml/h for volumes over 20 ml, otherwise 2 % of reading ±1 LSD for volumes over 10 ml under laboratory conditions.Degassed water at 15 °C to 30 °C (59 °F to 86 °F) is recommended for long tests.
長測試持續時間	100 個小時
容積測量
Method	由測量模塊直接測得容積，小采樣量為 60 微升
量程	0.06 ml 至 9999 ml
精度	流速在 16 ml/h 至 200 ml/h ，且容積大于 20 ml 時，為讀數的 1 % ± 1 LSD。否則在實驗室條件下大于 10 ml 時，為讀數的 2 % ± 1 LSD。
長測試持續時間	100 個小時
PCA bolus/dual flow measurement
Method	See volume measurement above
Min bolus volume	0.5 ml
分辨率	60 μl increments
Max test durations	100 個小時
壓力測量
Method (back pressure and flow test)	See volume measurement above
量程	0 psi 到 45 psi 或等同于 mmHg 和 kPa
精度	在實驗室條件下滿量程的 1 % ±1 LSD
長測試持續時間	1 hour
Other specification
模板	Predetermined test sequences.Typical capacity 200.
結果存儲	Test results stored for later viewing, printing or transfer to PC. Typical capacity 250 tests.
一般規格
Operating voltage range	100 V 交流至 240 V 交流
Supply frequency	50/60 Hz
Supply power	<50 VA（伏安）
Fuses	20 mm T1.6 A H 250 V x 2
大小（高 x 寬 x 深）	30 cm x 20 cm x 20 cm (12 in x 8 in x 8 in)
重量	5 kg approx. (11 lbs)
海拔高度	0 m 至 3000 m (0 ft 至 10000 ft)
溫度
操作	15 °C 至 30 °C（59 °F 至 86 °F）
存儲	所有液體排出時，-20 °C 至 +40 °C (-4 °F 至 +104 °F)
濕度	10 % 至 90 %，無冷凝

型號及配件

型號名稱	描述
IDA-5/4 US120V	Four-channel Infusion Device Analyzer, US 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 UK250V	Four-channel Infusion Device Analyzer, UK 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 SWZ250V	Four-channel Infusion Device Analyzer, Switzerland 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 SHK250V	Four-channel Infusion Device Analyzer, Shuko 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 ITAL250V	Four-channel Infusion Device Analyzer, Italy 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 ISR250V	Four-channel Infusion Device Analyzer, Israel 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 IND250V	Four-channel Infusion Device Analyzer, India 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 DEN250V	Four-channel Infusion Device Analyzer, Denmark 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 BRAZ230V	Four-channel Infusion Device Analyzer, Brazil 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/4 AUS250V	Four-channel Infusion Device Analyzer, Australia 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 ITAL250V	Two-channel Infusion Device Analyzer, Italy 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 US120V	Two-channel Infusion Device Analyzer, US 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 UK250V	Two-channel Infusion Device Analyzer, UK 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 SWZ250V	Two-channel Infusion Device Analyzer, Switzerland 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 SHK250V	Two-channel Infusion Device Analyzer, Shuko 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 ISR250V	Two-channel Infusion Device Analyzer, Israel 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 IND250V	Two-channel Infusion Device Analyzer, India 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 DEN250V	Two-channel Infusion Device Analyzer, Denmark 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 BRAZ230V	Two-channel Infusion Device Analyzer, Brazil 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/2 AUS250V	Two-channel Infusion Device Analyzer, Australia 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 US120V	One-channel Infusion Device Analyzer, US 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 UK250V	One-channel Infusion Device Analyzer, UK 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 SWZ250V	One-channel Infusion Device Analyzer, Switzerland 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 SHK250V	One-channel Infusion Device Analyzer, Shuko 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 ITAL250V	One-channel Infusion Device Analyzer, Italy 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 ISR250V	One-channel Infusion Device Analyzer, Israel 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 IND250V	One-channel Infusion Device Analyzer, India 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 DEN250V	One-channel Infusion Device Analyzer, Denmark 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 BRAZ230V	One-channel Infusion Device Analyzer, Brazil 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M
IDA-5/1 AUS250V	One-channel Infusion Device Analyzer, Australia 所包含的附件： Hydrograph software 用戶手冊 20 ml syringe LUERLOCK – 3 way 5 ft. plastic drain line Micro-90 bottle (225 ml) USB A-B Cable 2M

其他備件
48457FG	48457FG Luerlock 3-way t-valve (part# 2391750) for IDA4 Plus
49964FG	49964FG Priming Syringe (part# 2391792) (for use with IDA 4 PLUS)
76044	76044 Drain Tube (part# 2238909) Connect to rear outlet drain of IDA4 Plus
MICRO-90	MICRO-90 bottle 225ml (part# 4541948)

軟件
ANSUR IDA-5	Ansur IDA-5 Plug-In software (part# 4354503)
